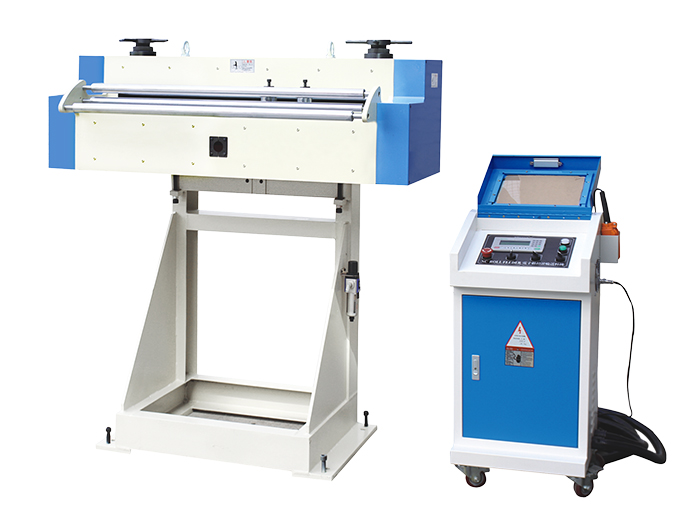

The feeder alias is a material conveying machine. Here, the punching material conveyor of the punching machine occasionally has some small faults in the actual work. If the material slips, the material will not be sent to the position, the position is not accurate, and the mold forming part is crushed. Unqualified issues. So this is a very serious fault. It's easy to find the cause and handle it quickly. The following methods make it easy to get the material slippage of the feeder.
First, find the reason, look at the cylinder management problem of the pneumatic device of the feeder. When the air pressure is not enough or the air pipe is not enough to cause the pressure is small, it is not enough to completely rely on the pressure spring when the material is clamped. If the material is too thick, it is easy to clip not only make the material slip. At this time, it is necessary to connect a gas pipe to the cylinder on the solenoid valve, so that the cylinder will have thrust, so that the roller on the feeder is clamped tightly, so that it will not Slippage can also be achieved by increasing the intake air pressure to increase the cylinder pressure.
Second, check whether the power spring of the feeding leveling roller is qualified, whether the rebounding strength can meet the requirements, if it is not possible to replace the new one. Increase pressure,
Third, When the feeding speed of the feeder can be satisfied, the distance between the feeder and the leveler or the material frame is shortened as much as possible, so that the waiting area is reduced, so that the material weight of the waiting area is reduced, thereby reducing the feeding machine. The load prevents the servo feeder from slipping due to excessive material in the waiting area.
